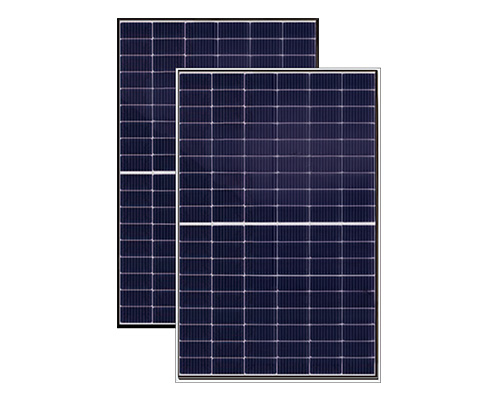

Panel Silver and Black Frame White Mesh RM-740W

Bifacial Silver Solar Panel RM-685-705W-210M-132TB

N-TOPCon bifacial solar panel up to 740W with a maximum efficiency of 23.82%. Its bifacial technology allows light to be captured on both the front and the back, increasing power generation by an additional 5% to 10% depending on installation conditions.
Thanks to its N-TOPCon monocrystalline cell structure, it offers higher efficiency and lower degradation over time. Designed to withstand extreme weather conditions, it comes with a 15-year product warranty and a 30-year linear performance warranty, ensuring a reliable, high-performance investment.

Category:

Description



Technical Data Sheet: Link

N-TOPCon bifacial solar panel up to 705W with a maximum efficiency of 22.70%.

Its bifacial technology allows light to be captured on both sides, increasing energy production by an additional 5% – 10% depending on the installation.
Thanks to its N-TOPCon monocrystalline cell structure, it offers higher efficiency and lower degradation over time. Designed to withstand extreme weather conditions, it has a 15-year product warranty and 30 years of linear performance, ensuring a reliable and high-performance investment.

Main characteristics:

  • Product Type: Bifacial Solar Panel
  • Modelo: RM-685W-705W-210M/132TB
  • Technology: N-TOPCon Monocrystalline
  • Rated Potential:685W – 705W
  • Maximum Efficiency: 22.70%.
  • Warranty: 15-year product warranty, 30-year linear performance warranty
  • Dimensions and Weight: 2384 x 1303 x 33 mm, 38 kg

Technical specifications:

  • Maximum power (Pmax): 685W – 705W
  • Open circuit voltage (Voc): 47.10V – 48.80V
  • Short circuit current (Isc): 18.21A – 18.36A
  • Maximum power voltage (Vmpp): 39.80V – 40.70V
  • Maximum power current (Impp): 17.19A – 17.33A
  • Operating temperature: -40°C to 85°C
  • Temperature Coefficient Pmax: -0.30%/°C
  • Bifacial factor: 80±5%.
  • Resistance to environmental conditions: High resistance to salt spray, ammonia and corrosion.
  • Certifications: IEC 61215, IEC 61730, CE

Additional benefits:

  • Advanced Bifacial Technology: Increases energy production by 5% to 10% by capturing light at the rear.
  • Non Destructive Cutting (NDC): Reduces energy loss during the manufacturing process and improves panel efficiency.
  • Extreme Durability: Certified to withstand harsh climates, saline and corrosive environments.
  • Optimal Low Light Performance: Thanks to N-TOPCon technology, it maintains excellent efficiency in cloudy or low light conditions.
  • EL Full Inspection: Two-stage quality control to ensure panel efficiency and reliability.
  • Robust and Reliable Design: Anodized aluminum structure with 2.0 mm high-strength glass.
  • 2. RM685705W210M132TB
