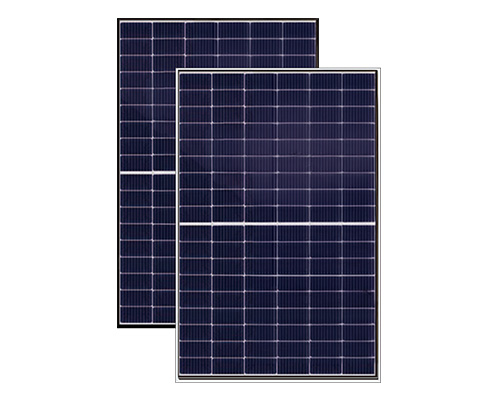

Bifacial Solar Panel RM-495W-500W-182M-120TB

Bifacial Solar Panel RM-495W-500W-182M-120TB

N-TOPCon bifacial solar panel up to 500W with a maximum efficiency of 22.09%. Its bifacial technology allows light to be captured on both sides, increasing energy production by an additional 5% – 25% depending on the installation.
Thanks to its N-TOPCon monocrystalline cell structure and Multi Busbar technology, it improves optical efficiency and electrical current distribution. Designed to withstand extreme weather conditions, it comes with a 12-year product warranty and 30-year linear performance guarantee, ensuring a reliable and high-performance investment.

Category:

Description



Technical Data Sheet: Link

N-TOPCon bifacial solar panel up to 500W with a maximum efficiency of 22.09%.

Its bifacial technology allows light to be captured on both sides, increasing energy production by an additional 5% – 25% depending on the installation.
Thanks to its N-TOPCon monocrystalline cell structure and Multi Busbar technology, it improves optical efficiency and electric current distribution. Designed to withstand extreme weather conditions, it comes with a 12-year product warranty and 30-year linear performance guarantee, ensuring a reliable and high-performance investment.

Main characteristics:

  • Product Type: Bifacial Solar Panel
  • Modelo: RM-495W-500W-182M/120TB
  • Technology: N-TOPCon Monocrystalline
  • Nominal Power: 495W – 500W
  • Maximum Efficiency: 22.09%
  • Warranty: 12 years product warranty, 30 years linear performance warranty
  • Dimensions and Weight: 1996 x 1134 x 35 mm, 28 kg

Electrical specifications (STC):

  • Maximum power (Pmax): 495W – 500W
  • Open Circuit Voltage (Voc): 45.32V – 43.65V
  • Short-circuit current (Isc): 14.37A – 14.47A
  • Maximum power voltage (Vmpp): 36.76V – 36.88V
  • Maximum power current (Impp): 13.46A – 13.56A
  • Maximum system voltage: 1500V DC
  • Bifacial factor: 80±5%.
  • Temperature Coefficient Pmax: -0.30%/°C
  • Temperature Coefficient Voc: -0.25%/°C
  • Temperature coefficient Isc: 0.046%/°C
  • Resistance to environmental conditions: High resistance to salt spray, ammonia and corrosion.
  • Certifications: IEC 61215, IEC 61730, IEC 61071, IEC 62716, WEEE De93315506

Additional benefits:

  • Increased Energy Production: 5% – 25% increase in energy generation with a lower levelized cost of electricity (LCOE).
  • Multi Busbar Technology: Improves optical efficiency and reduces power loss.
  • PID resistor: Optimized protection against potential-induced degradation.
  • Optimal Low Light Performance: Excellent performance in low light conditions.
  • High Durability in Extreme Conditions: Salt and ammonia resistance certification (TUV NORD).
  • Full EL Inspection: Two-stage inspection to ensure the quality and reliability of the module.
