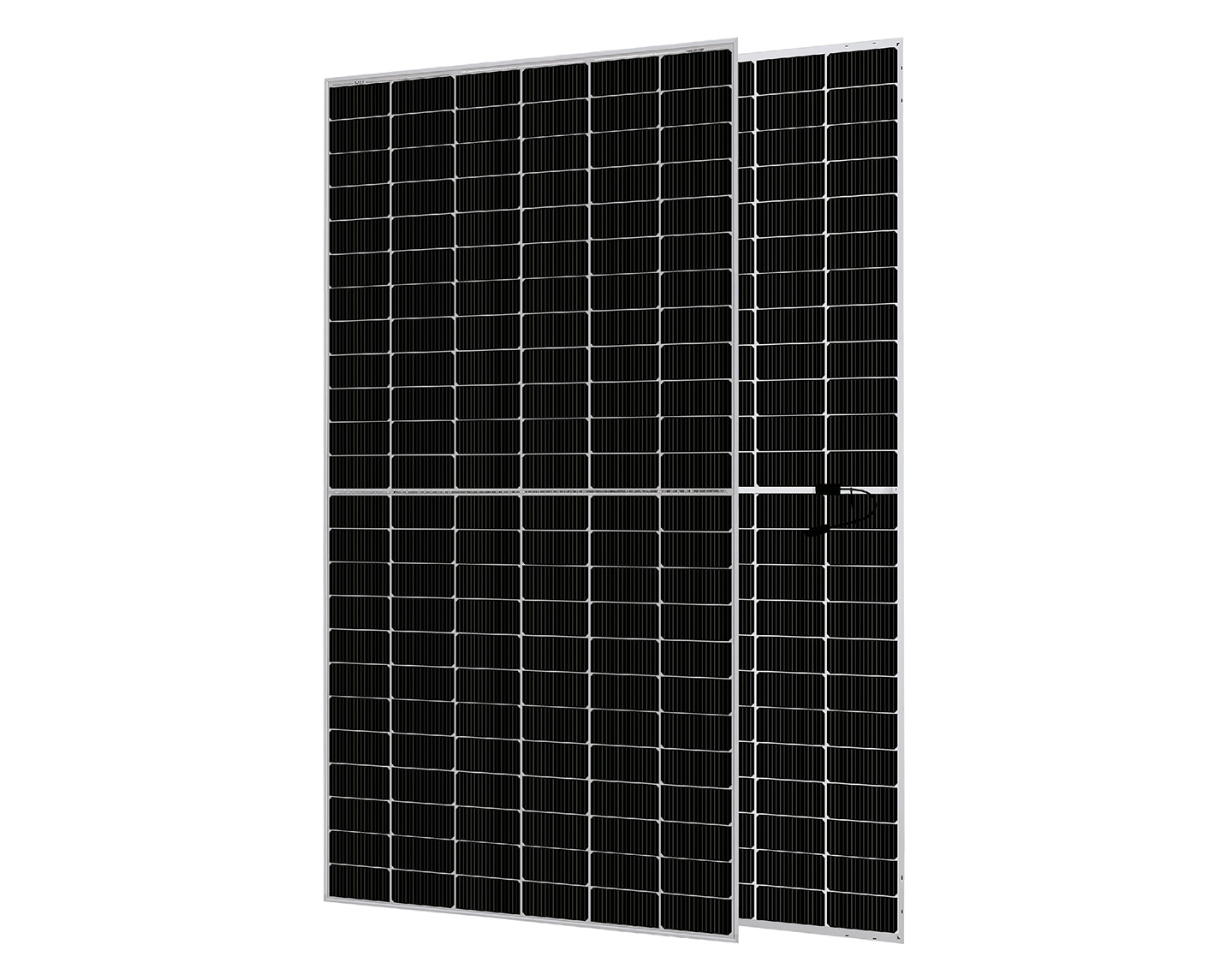

N-TOPCon Bifacial Solar Panel 570-595W with Silver Frame

N-TOPCon Bifacial Solar Panel 570-595W with Silver Frame

The N-TOPCon 570-595W bifacial solar panel with silver frame offers a high energy efficiency of 23.04% and a lifetime of up to 25 years power warranty. Thanks to its bifacial technology, it allows greater energy capture, optimizing performance in low irradiation conditions and ensuring a better return on investment.

Category:

Description



Technical Data: Link

N-TOPCon 570-595W bifacial solar panel with silver frame offers high energy efficiency of 23.04% and a lifetime of up to 25 years power warranty. Thanks to its bifacial technology, it allows greater energy capture, optimizing performance in low irradiation conditions and ensuring a better return on investment. Designed to adapt to modern photovoltaic systems, this plate stands out for its resistance to adverse weather conditions, low degradation and high reliability thanks to its non-destructive cutting technology.

Main characteristics:

  • Product Type: Bifacial Solar Panel
  • Model: MS(570-595)MB-72H
  • Technology: N-TOPCon
  • Nominal Power: 570W – 595W
  • Maximum Efficiency: 23.04%.
  • Warranty: 15 years of product, 25 years of linear performance
  • Dimensions and Weight: 2279 × 1134 × 30 mm, 29 kg
  • Cells: 144 monocrystalline cells
  • Cell Size: 182 × 91 mm
  • Maximum System Voltage: 1500V DC
  • Junction box: IP68, 3 bypass diodes
  • Frame type: Anodized aluminum alloy

Technical specifications:

  • Maximum Power (Pmax): 570W – 595W
  • Open Circuit Voltage (Voc): 51.00V – 51.80V
  • Short Circuit Current (Isc): 14.00A – 14.32A
  • Maximum Power Voltage (Vmpp): 43.20V – 44.00V
  • Maximum power current (Impp): 12.19A – 13.08A
  • Temperature Coefficient Pmax: -0.320%/°C
  • Temperature Coefficient Voc: -0.270%/°C
  • Temperature Coefficient Isc: 0.046%/°C

Additional benefits:

  • High customer value:
    Reduces levelized cost of energy (LCOE), optimizes investment and is compatible with modern systems.
  • High energy efficiency:
    IAM-certified technology for improved energy production in shading conditions.
  • High reliability:
    Micro-crack resistance due to non-destructive cutting technology and high quality materials.
  • Extreme resistance:
    Certified to withstand hostile environments with high salinity, ammonia and sand.
  • Low degradation:
    Loss of only 1% in the first year and 0.4% annual degradation guaranteed for 25 years.
  • Superior mechanical resistance:
    Supports up to 5400 Pa of positive load and 2400 Pa of negative load.
