Description
Technical Data Sheet: Link

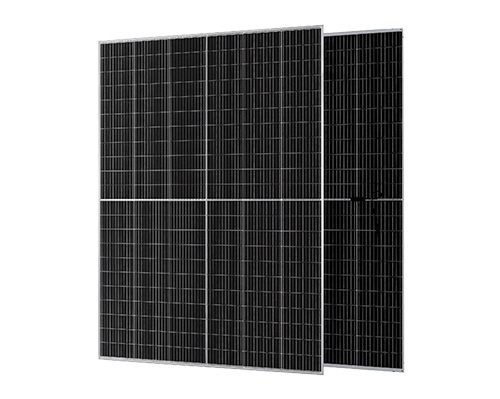

Bifacial solar panel from 675W to 710W with a maximum efficiency of 22.87%. Its HJT technology enables high performance with a symmetrical cell structure that maximizes energy collection at the front and rear, increasing output by up to 95%. Designed for installations in solar power plants, industrial and commercial rooftops, it offers long-term stability and resistance in extreme environments.
Main characteristics:
- Product Type: Bifacial Solar Panel
- Model: MS(675-710)JT-66H
- Technology: HJT (Heterojunction Technology)
- Nominal Power: 675W – 710W
- Maximum Efficiency: 22.87%.
- Warranty: 30 years of product and 30 years of linear performance
- Dimensions and Weight: 2384 mm × 1303 mm × 35 mm, 38.5 kg
- Cells: 132 monocrystalline cells
- Maximum System Voltage: 1500V DC
- Junction box: IP68, 3 bypass diodes
- Frame type: Anodized aluminum alloy
Technical specifications:
- Maximum Power (Pmax): 675W – 710W
- Open Circuit Voltage (Voc): 48.05V – 49.15V
- Short Circuit Current (Isc): 14.08A – 14.57A
- Maximum Power Voltage (Vmpp): 40.65V – 42.05V
- Maximum Power Current (Impp): 13.19A – 13.44A
- Temperature Coefficient Pmax: -0.24%/°C
Additional benefits:
- High bifacial performance: It can generate up to 95% more energy thanks to back capture.
- Increased stability: HJT technology eliminates PID and LID effects, ensuring longer service life.
- Low temperature efficiency: Optimized temperature coefficient of -0.24%/°C for warm environments.
- Uniform design: Uniform color with no differences in shade due to the manufacturing process.
- High profitability: Return on investment 18% higher than PERC modules and 12% higher than Topcon modules.
- Flexibility and strength: The cell structure minimizes the risk of micro-cracks and improves system stability.
